Step 1

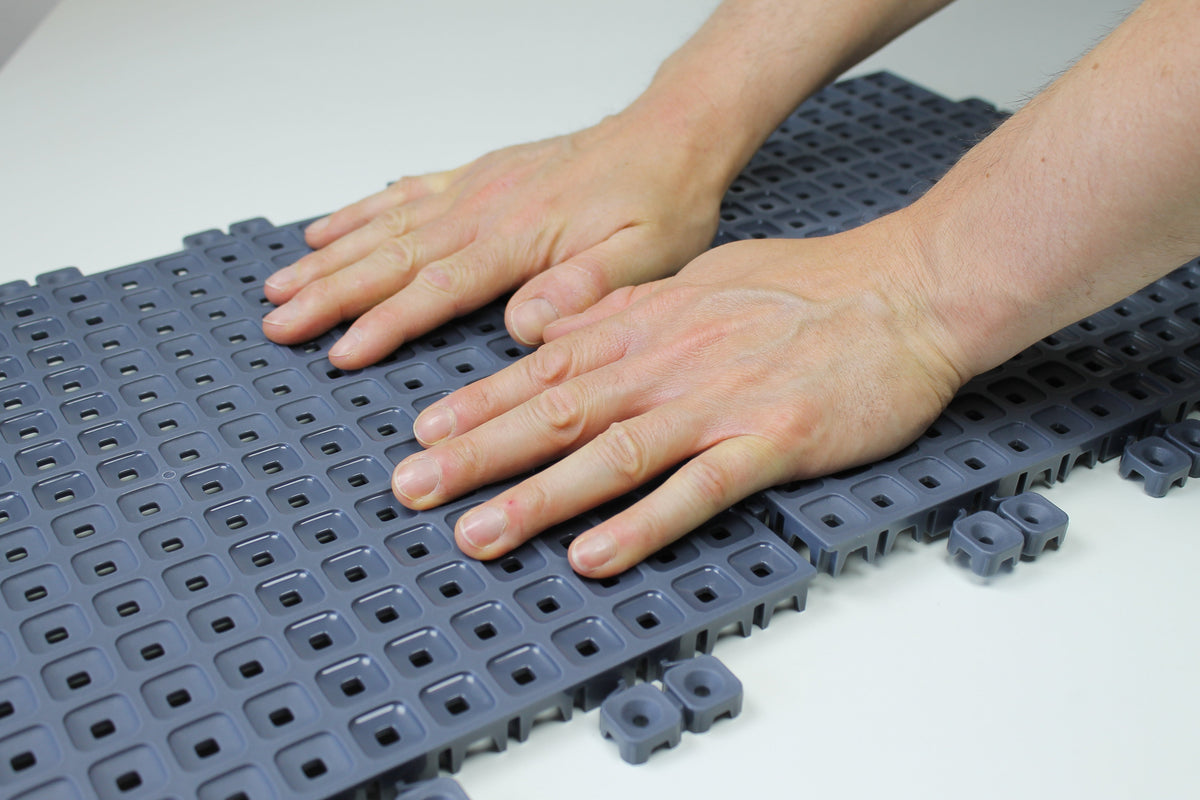

Tile assembly: simply align one tile over the connectors and another tile. Push down to snap securely together.

NOTE: There will be a 2.4mm expansion gap between the tiles once assembled.

Step 2

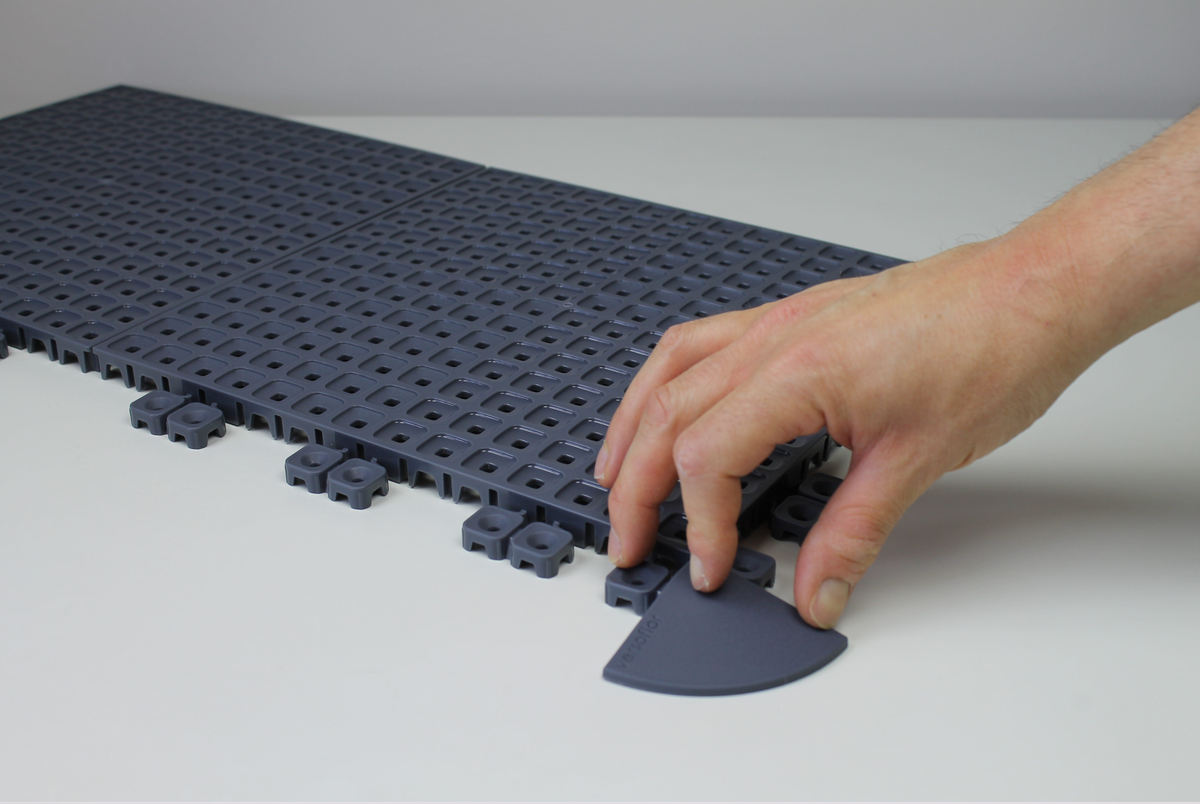

Edge trim assembly: put corner trim in position, then push edge trim into available connectors and snap securely together.

Step 3

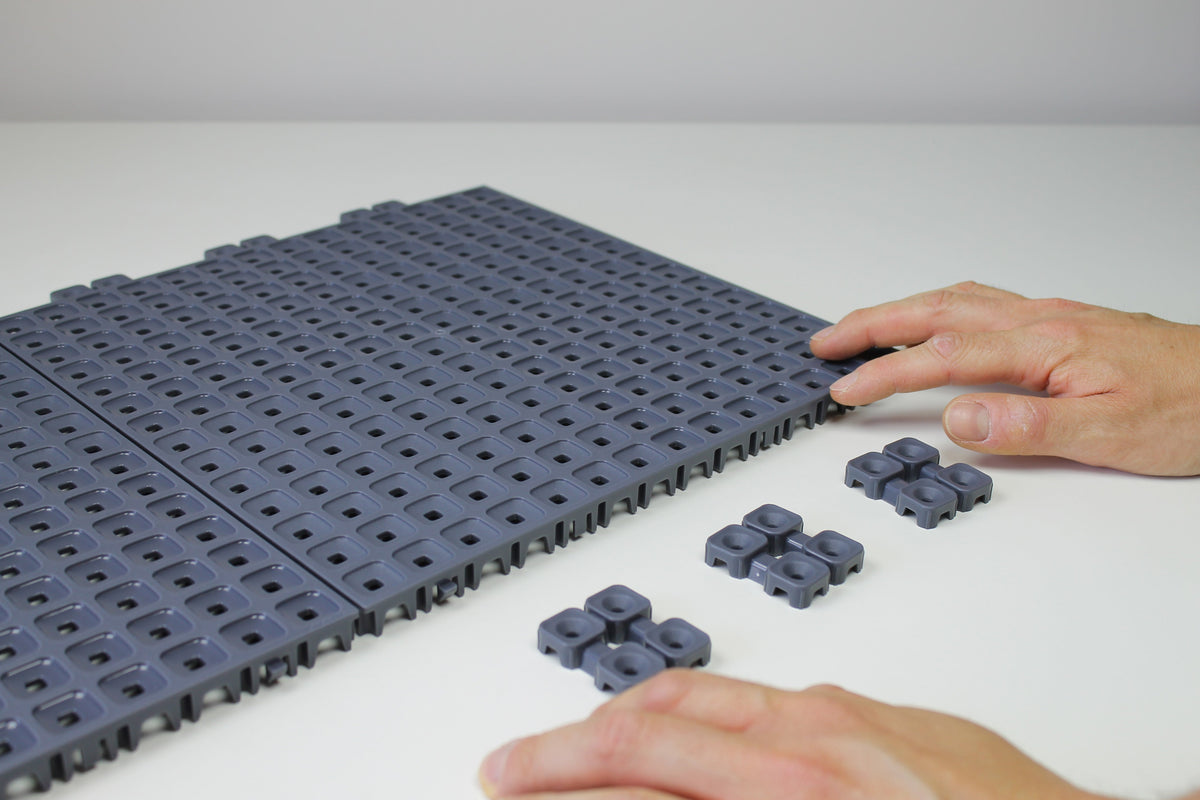

Adding connectors: where there are no edge connectors on the tile, simply use a 'tile' connector'. Simply lift and push it beneath.

Step 4

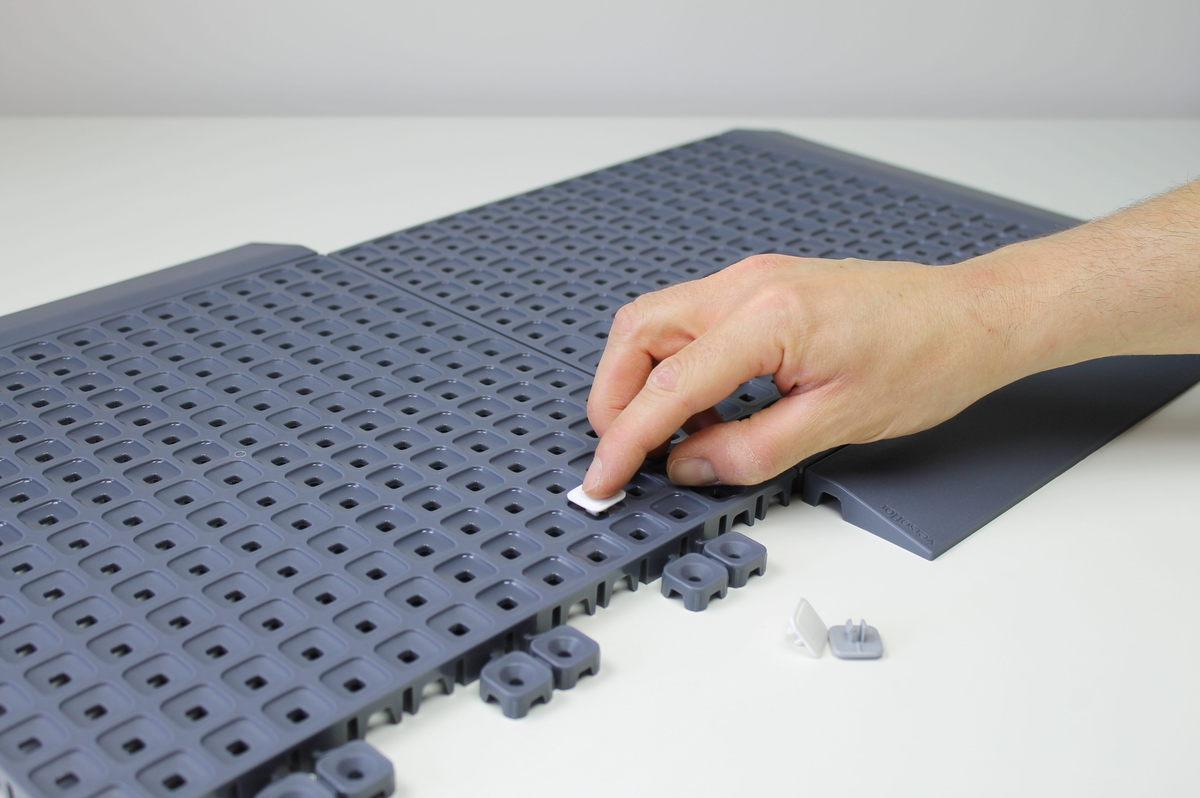

Mosaic Insertion: choose any of the square holes and push mosaic in securely. To remove mosaics, overturn the tile and use pliers.

Top Tip: design the pattern with overturned tiles and then push them into place once happy wth the design.

Step 5

Cable clip: for cable management and use with LED strips, simply push into place as shown above.

Step 6

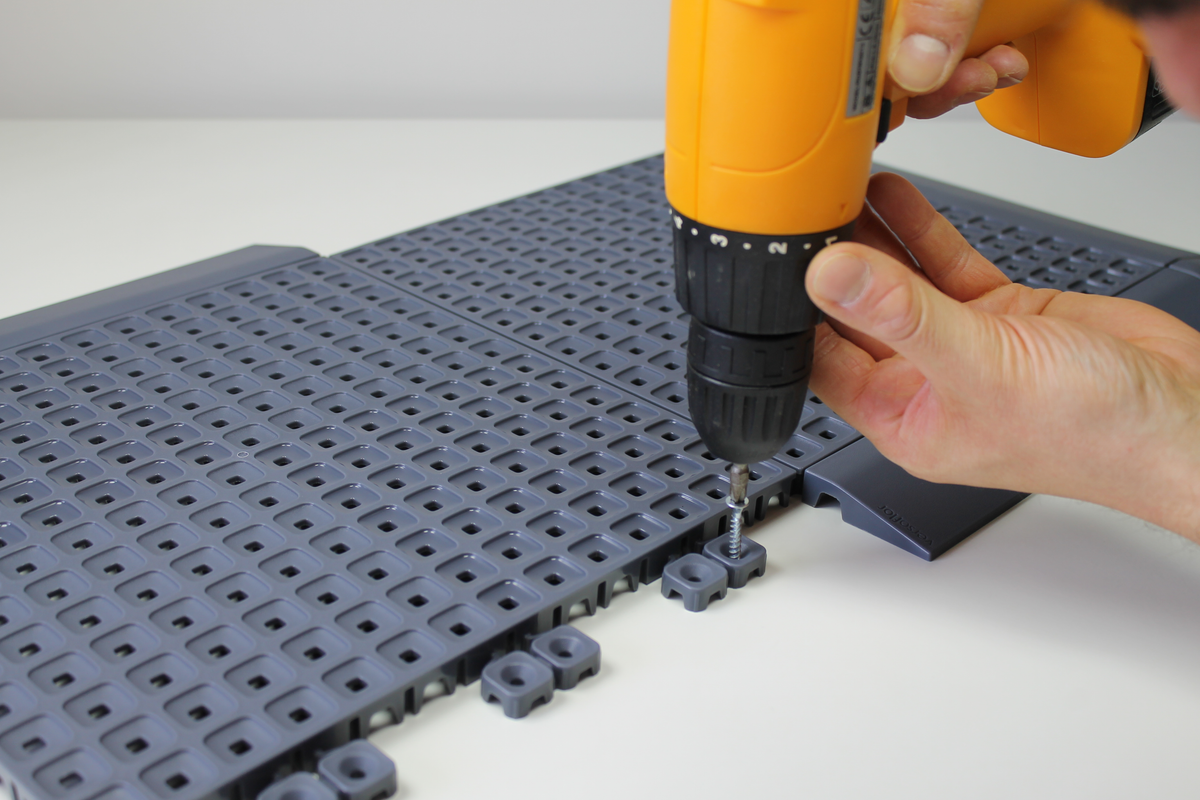

Tile fixing: this it NOT ESSENTIAL, but if you want to secure the floor to ground, use a No 6-8 wood screw. This is concealed by the adjacent tile or edge trim.

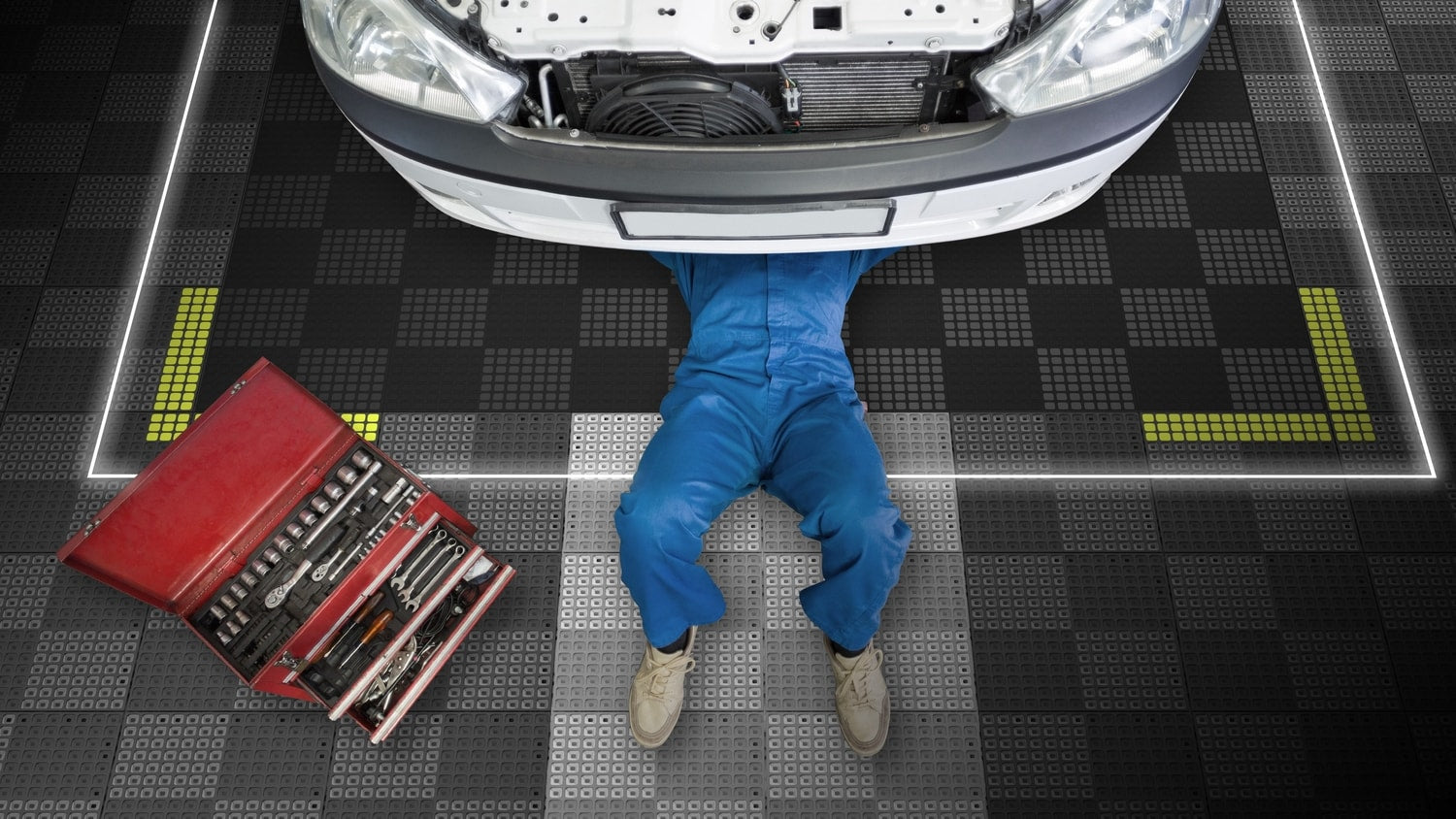

Top Tip: Fixing is ideal for the front edge of a garage space to prevent the tiles from moving as a vehicle drives onto the flooring
